High-Resolution Audio Coaxial Speaker Systems


Car audiophiles hungering for an audiophile-grade experience in their car have good reason to be excited about the NEW High-Resolution Audio component systems extending the frequency range as high as 50,000 Hz.

The new ES-1200iS is the cherry high energy, wide range tweeter audiophiles have been waiting for extending the frequency range as high as 50,000 Hz. Some might call this excessive, but CDT Audio engineers knows that these ultra-high frequencies provide the ambient details that add nuance and character to your music. This tweeter is more efficient, has a flatter On/Off axis response.

Take a good look below at the On/Off axis curves on the charts at the bottom of the page. Notice especially in the 45 degree graph the ES-1200iS has a flat response all the way to 15 kHz. This is amazing performance that has audible consequences. Openness and clarity are enhanced because the power response is improved compared to conventional drivers. Choose the High-Resolution Audio (HRA) Coaxial System with the woofer size that best fits your vehicle.

HRA-0690EX Pair

HRA-0690EX Pair

High-Resolution Audio Coaxial System
1 pair 6X9” Bass/mid-bass woofer with built-in
ES-1200iS High-Resolution Audio 1” silk dome tweeter.

  • 1 pr 6X9” HRA-0690EX woofers
  • 1 pr Built-in ES-1200iS 50kHz 1” High-Resolution tweeter
  • Built-in tweeter protection crossover
  • Power handling: 250 WRMS @ HPF 100H hz
  • Frequency response: 20-50,000 hz
  • (Optimum enclosure)
  • Nominal impedance: 2/4 ohms
  • Sensitivity: 86.2 dB
  • Cone: Woven carbon fiber
  • Mounting depth: 3.44”
  • Cone surround: Butyl rubber
  • Magnet weight: 30 oz
  • Voice coil woofer: 2.0”



Promo Price:
$249.99


Reg. $500
HRA-690EX Pair

HRA-690EX Pair

High-Resolution Audio Coaxial System
1 pair slim 6X9” Bass/mid-bass woofer with built-in
ES-1200iS High-Resolution Audio 1” silk dome tweeter

  • 1 pr 6X9” HRA-690EX slim 6X9” woofers
  • 1 pr Built-in ES-1200iS 50 kHz 1” High-Resolution tweeter
  • Built-in tweeter protection crossover
  • Power handling: 225 WRMS @ HPF 100 Hz
  • Frequency response: 20-50,000 Hz
  • (Optimum enclosure)
  • Nominal impedance: 2/4 ohms
  • Sensitivity: 89.2 dB
  • Cone: Woven carbon fiber
  • Mounting depth: 2.84”
  • Cone surround: Butyl rubber
  • Magnet weight: 27 oz
  • Voice coil woofer: 2.0”



Promo Price:
$199.99


Reg. $400
HRA-6EXiS Pair

HRA-6EXiS Pair

High-Resolution Audio Coaxial System

1 pair  6.7” Bass/mid-bass woofer with built-in
ES-1200iS High-Resolution Audio 1” silk dome tweeter.

  • 1 pr 6.7” cast woofers
  • 1 pr Built-in ES-1200iS 50kHz 1” High-Resolution tweeter
  • Built-in tweeter protection crossover
  • Power handling: 200 WRMS @ HPF 110 Hz
  • Frequency response: 50-50,000 Hz (Optimum enclosure)
  • Nominal impedance: 2/4 ohms
  • Sensitivity: 93.1 dB
  • Cone: Reinforced carbon compound
  • Mounting depth: 2.75”
  • Cone surround: Butyl rubber
  • Magnet weight: 20 oz
  • Voice coil woofer: 1.5”



Promo Price:
$179.99


Reg. $400

HRA-061EXIS Pair

HRA-061EXIS Pair

High-Resolution Audio Coaxial System

1 pair  6.7” Bass/mid-bass woofer with built-in
ES-1200iS High-Resolution Audio 1” silk dome tweeter.

  • 1 pr 6.7” cast Bass-mid-bass woofers
  • 1 pr Built-in ES-1200iS 50kHz 1” High-Resolution tweeter
  • Built-in tweeter protection crossover
  • Power handling: 300 WRMS @ HPF 90Hz
  • Frequency response: 20-50,000 Hz (Optimum enclosure)
  • Nominal impedance: 2/4 ohms
  • Sensitivity: 83.9 dB
  • Cone: Mix-Fiberglass
  • Mounting depth: 2.9”
  • Cone surround: Butyl rubber
  • Magnet weight: 30 oz
  • Magnet rubber boot
  • Voice coil woofer: 2.0”


Promo Price:
$249.99


Reg. $450











All with a wide range tweeter extending the frequency range as high as 50,000 hz
(See charts below)


















HRA-061EXIS Pair










All with a wide range tweeter extending the frequency range as high as 50,000 hz

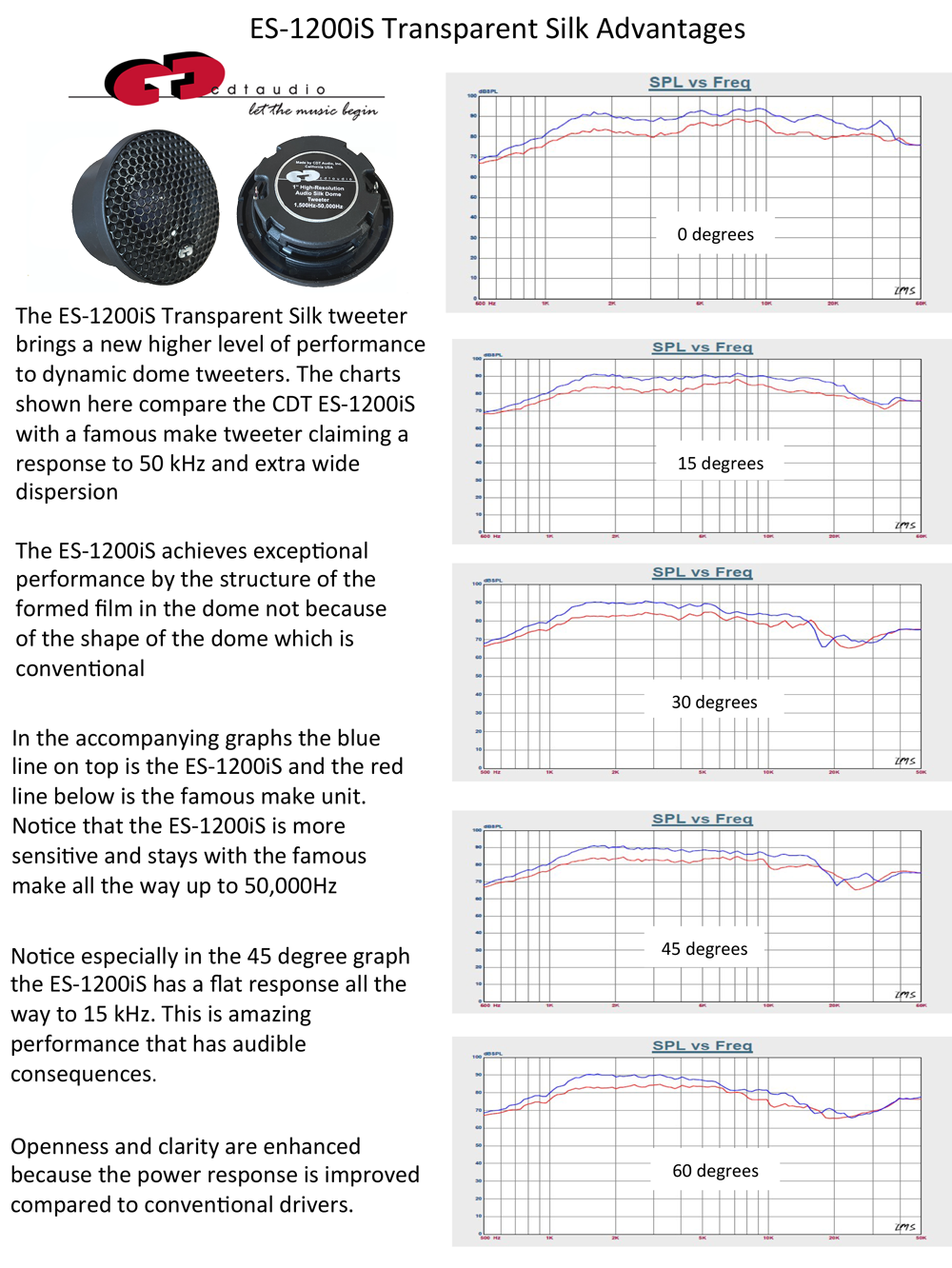

ES-1200iS Transparent Silk Advantage
